ASRock H610M-HDV/M.2 R2.0 Intel H610 LGA1700 Micro ATX DDR4 Motherboard | UAE

Product Overview for ASRock H610M-HDV/M.2 R2.0

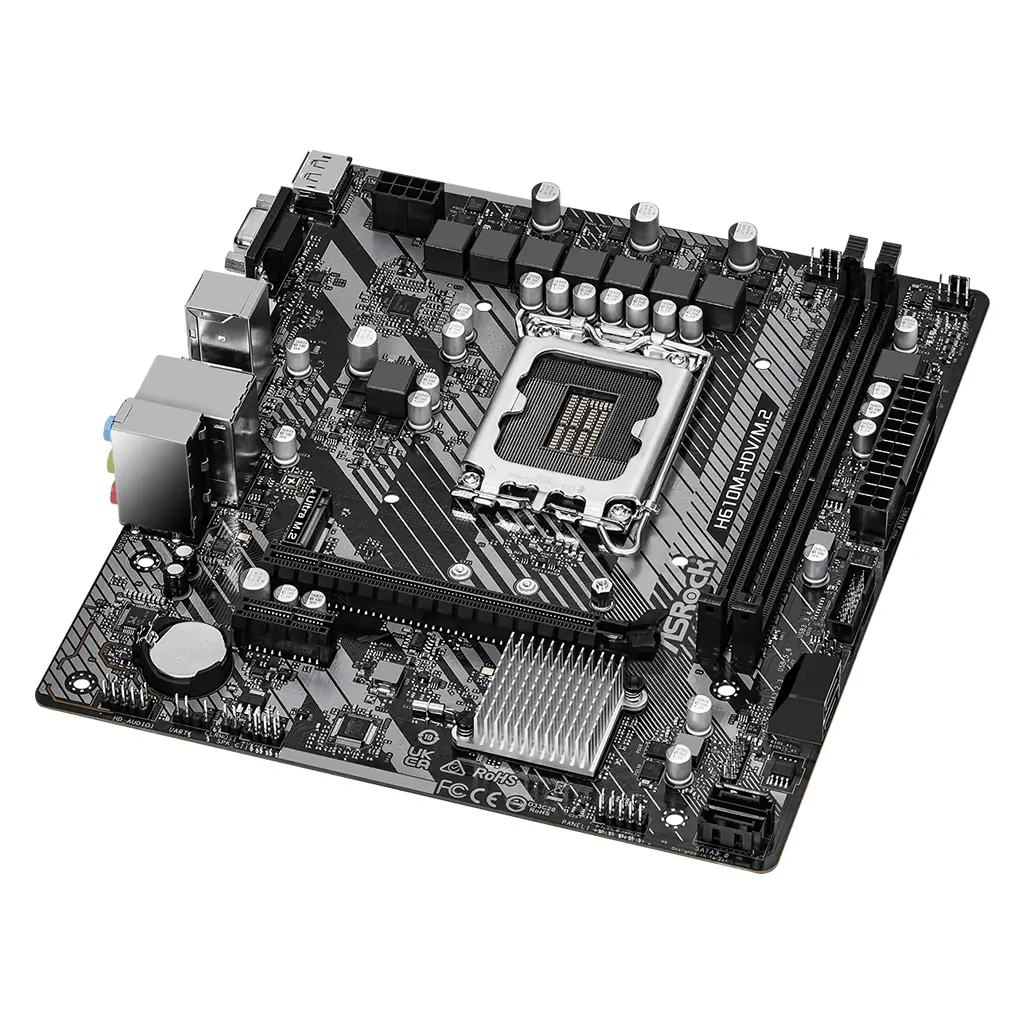

The ASRock H610M-HDV/M.2 R2.0 is a compact Micro ATX motherboard designed for Intel 14th, 13th, and 12th Gen Core processors using the LGA1700 socket. It is a practical choice for everyday desktop builds, office PCs, budget gaming systems, and entry-level productivity setups in the UAE. Built on the Intel H610 chipset, this motherboard supports DDR4 memory, PCIe 4.0 graphics card installation, SATA storage, and one Ultra M.2 slot for NVMe SSD upgrades. The board includes HDMI, DisplayPort, and D-Sub outputs for compatible Intel processors with integrated graphics, making it flexible for non-GPU desktop builds as well.

For connectivity, the ASRock H610M-HDV/M.2 R2.0 includes Realtek Gigabit LAN, USB 3.2 Gen1 ports, USB 2.0 ports, and 7.1 channel HD audio. Its Micro ATX size fits many compact and standard PC cases, making it suitable for UAE PC builders looking for a reliable Intel DDR4 motherboard for daily use, gaming, and business systems.

Technical Specifications for ASRock H610M-HDV/M.2 R2.0

Brand	ASRock
Model	H610M-HDV/M.2 R2.0
Part Number	90-MXBJH0-A0UAYZ
Chipset	Intel H610
CPU Socket	Intel LGA1700
Processor Compatibility	Intel 13th and 12th Gen Core processors
Form Factor	Micro ATX
Dimensions	8.66 x 7.6 inches / 22.0 x 19.3 cm
Memory Support	DDR4, Dual Channel
Memory Slots	2 x DDR4 DIMM
Maximum RAM	64GB
Memory Speed	Up to DDR4 3200MHz
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
M.2 Slots	1 x Ultra M.2 PCIe Gen3 x4
SATA Ports	4 x SATA3 6.0Gb/s
LAN	Realtek RTL8111H Gigabit LAN
Rear USB Ports	2 x USB 3.2 Gen1, 4 x USB 2.0
Internal USB Headers	1 x USB 3.2 Gen1 header, 1 x USB 2.0 header
Display Outputs	HDMI, DisplayPort 1.4, D-Sub
Audio	Realtek ALC897 7.1 Channel HD Audio
Cooling Features	1 x CPU fan connector, 1 x chassis/water pump fan connector
Power Design	6+1+1 Phase Power Design
Expansion Features	PCIe 4.0 GPU support, PCIe 3.0 x1 expansion
Operating System Support	Windows 10 64-bit, Windows 11 64-bit

Key Features for ASRock H610M-HDV/M.2 R2.0

• Intel 14th, 13th, and 12th Gen Core processors with LGA1700 socket
• DDR4 desktop memory up to 64GB
• PCIe graphics cards including RTX and Radeon GPUs
• NVMe SSDs using PCIe Gen3 x4 M.2 interface
• SATA SSDs and HDDs
• Micro ATX and ATX PC cases
• Windows 10 64-bit and Windows 11 64-bit


Is the ASRock H610M-HDV/M.2 R2.0 compatible with Intel processors?
Yes, this motherboard supports Intel 14th, 13th, and 12th Gen Core processors using the LGA1700 socket.

Is this motherboard suitable for gaming PCs?
Yes, it can be used for budget and mid-range gaming PC builds with a compatible Intel processor, DDR4 RAM, NVMe SSD, and dedicated graphics card.

Can I upgrade storage later?
Yes, the motherboard includes 1 Ultra M.2 PCIe Gen3 x4 slot for NVMe SSDs and 4 SATA3 ports for SATA SSDs or hard drives.

What size case supports this motherboard?
This is a Micro ATX motherboard. It can fit in most Micro ATX and standard ATX PC cases.
